When a transformer manufacturer receives two quotations for the same oil-immersed distribution core, one using 0.23 mm grain-oriented silicon steel and one using a 0.18 mm amorphous ribbon, the no-load loss figures can differ by more than 30 percent. The material with lower loss may cost three times more, deliver slower, and require a completely different stacking process. Choosing transformer core materials is not a one-line specification decision. It starts with the loss target, follows into the manufacturing line, and ends with the transformer's real application.

Transformer Core Materials: Selection Starts With Loss Targets

No single transformer core material wins on every metric. You choose a material by defining the magnetic flux density, the permitted core loss, and the cost of that loss over the transformer's service life before you open a catalogue.

Hysteresis loss depends on the material's magnetic domain structure. Eddy-current loss depends on lamination thickness, surface insulation, and stacking tightness. This is why an engineering discussion about transformer core materials is really about where energy goes, not just what is printed on a datasheet.

Silicon Steel vs Amorphous: What the Data Says About Core Materials

Grain-oriented silicon steel remains the default for 50/60 Hz transformer cores because its high saturation and dimensional stability allow compact, mechanically robust designs. Amorphous ribbon wins only when no-load loss dominates the cost of ownership.

The table shows the practical consequence for a distribution transformer. If you choose amorphous ribbon, you buy approximately two to three times more material cost, and you need a larger window to reach the same flux. But the no-load loss can drop by 70 percent. For a line that runs 8,760 hours a year, the energy saved can outweigh the initial investment.

Core Assembly Quality Changes Transformer Core Material Performance

A well-selected material can be spoiled by poor cutting and stacking. Burr, lamination surface insulation, and stacking pressure directly change the eddy-current path and measured core loss.

When silicon steel sheets are cut, the burr height at the edge affects the inter-laminar short-circuit path. If the burr exceeds the coating thickness, eddy currents circulate between laminations, and the transformer runs hotter. That is why a high-precision core producer treats cutting and stacking as part of material performance.

• Burr height after shearing should be kept below a manufacturer-specified value, typically 0.02 to 0.05 mm for thin silicon steel.
• Surface insulation coating must survive cutting and handling without creating local conductive bridges.
• Stacking pressure must be uniform; uneven pressure creates magnetic noise and vibration.
• Lamination factor changes when stacking is loose. A drop from 0.97 to 0.94 increases the magnetizing current.

Automatic In-line Transformer Core Stacking Production LineThis equipment integrates shearing and core stacking, eliminating manual handling and enhancing process repeatability. It ensures precise control for different lamination materials, critical for minimizing eddy current losses in transformer cores.View Product →

Automated stacking equipment keeps the lamination sequence and pressure repeatable, which matters when you switch between silicon steel and amorphous ribbon. A line designed for 0.23 mm steel may not handle a 0.18 mm amorphous foil without special tension and clamping controls.

Matching Transformer Core Materials to Transformer Type

Dry-type, oil-immersed, mining explosion-proof, and three-dimensional triangular wound cores impose different thermal, mechanical, and winding constraints. Material choice should follow the transformer type, not the other way around.

Oil-immersed transformers

Oil-immersed transformers can use grain-oriented silicon steel or amorphous ribbon because the oil removes heat efficiently. The core material must resist mineral oil and withstand a long service life at elevated temperature. For distribution transformers operated at low load, amorphous cores reduce no-load loss but require a larger tank.

Oil-Immersed Transformer Core for Distribution TransformersManufactured from grain-oriented silicon steel with high permeability, this core achieves ultra-low no-load loss and complies with national standards. It is designed for S11 and S13 oil-immersed distribution transformers, providing reliable performance in urban and rural grid applications.View Product →

Dry-type transformers

Dry-type transformers rely on air cooling, so core losses translate directly into surface temperature rise. Silicon steel with a high lamination factor gives a compact composite. Some dry-type designs use triangular wound cores to balance the magnetic and electric field distribution.

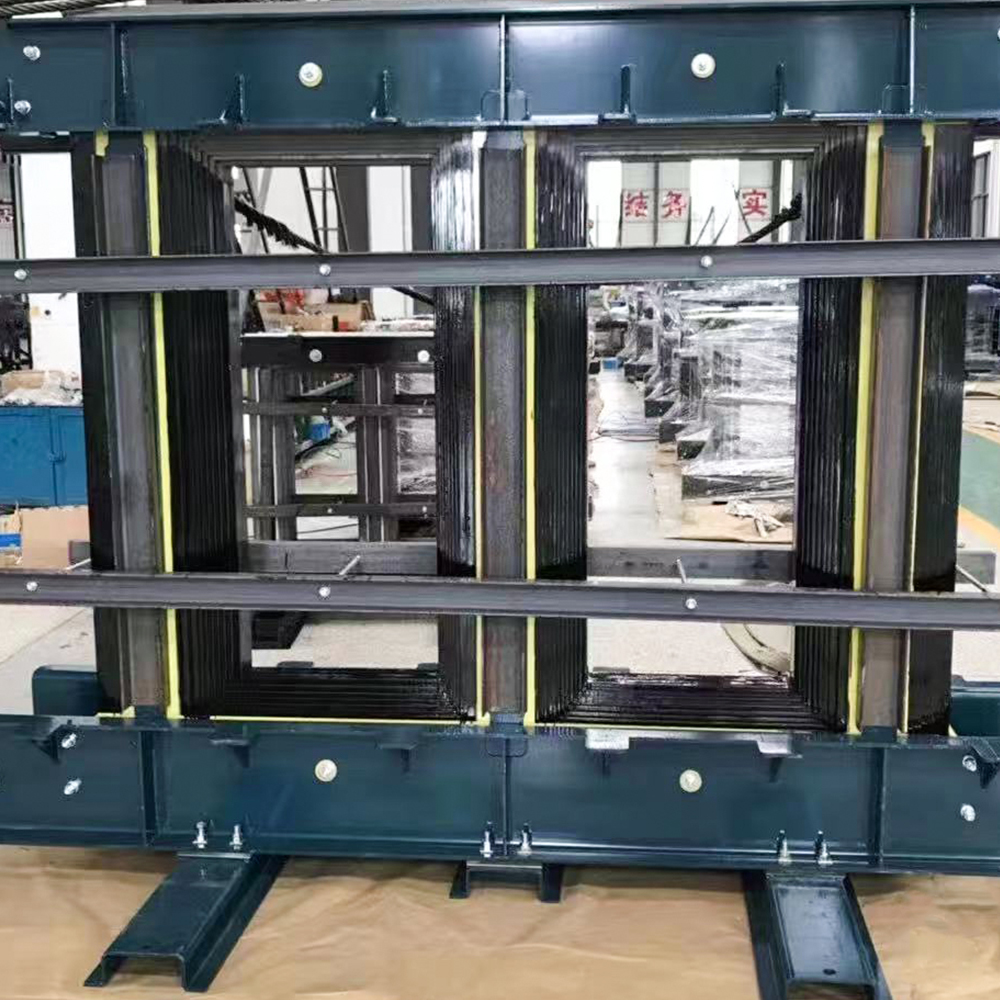

Dry-Type Transformer Core with Low Noise and LossBuilt with premium silicon steel and step-lap stacking, this core minimizes noise below 55 dB and ensures low no-load loss. Its moisture-proof coating and robust construction suit epoxy resin cast dry-type transformers used in indoor or commercial environments.View Product →

Three-dimensional triangular wound cores

This geometry makes the three limbs identical, reducing the unbalanced flux and allowing the core to be smaller. The material must have very consistent thickness and low internal stress because a wound core is formed into a rounded shape during assembly.

Procurement Questions That Prevent Costly Mistakes

Ask about tolerance, coating, and stacking capability before you compare unit prices. A lower material price can disappear after a few months of increased no-load loss or failed transformer tests.

• What is the supplier's guaranteed lamination factor for the selected grade?
• Can the core manufacturer demonstrate burr control on the exact sheet thickness you need?
• Is the material supplied with a tested insulation coating that survives the stacking process?
• How does the stacking line handle thin amorphous ribbon compared with 0.23 mm steel?
• What is the batch-to-batch variation in saturation and loss?

Working with a supplier that runs its own silicon steel cutting lines and core stacking equipment shortens the feedback loop when a material issue appears on the production floor.

Frequently Asked Questions

What is the most common transformer core material?

Grain-oriented silicon steel is the most common transformer core material for 50/60 Hz power transformers. It offers high saturation, good stacking density, and low loss when processed into laminations.

Is amorphous metal worth the extra cost?

Amorphous metal is worth the extra cost when no-load loss dominates the lifetime energy bill, such as in long-running distribution transformers. It becomes less attractive when load losses dominate or when space is limited.

How does core stacking quality affect material choice?

Poor stacking increases eddy-current loss and can raise core loss by 5 to 15 percent. This means a lower-grade steel with excellent stacking can outperform a high-grade steel that is stacked badly.

Can the same material be used for dry-type and oil-immersed cores?

Yes, grain-oriented silicon steel is used in both dry-type and oil-immersed cores. The difference is the insulation system, cooling method, and thermal stress, which may require a different coating or stacking arrangement.
